MIL-M-38510-108 Microcircuits, Linear, Transistor Arrays, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon transistor arrays. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34


MIL-M-38510/108A

Device type 01


Case M

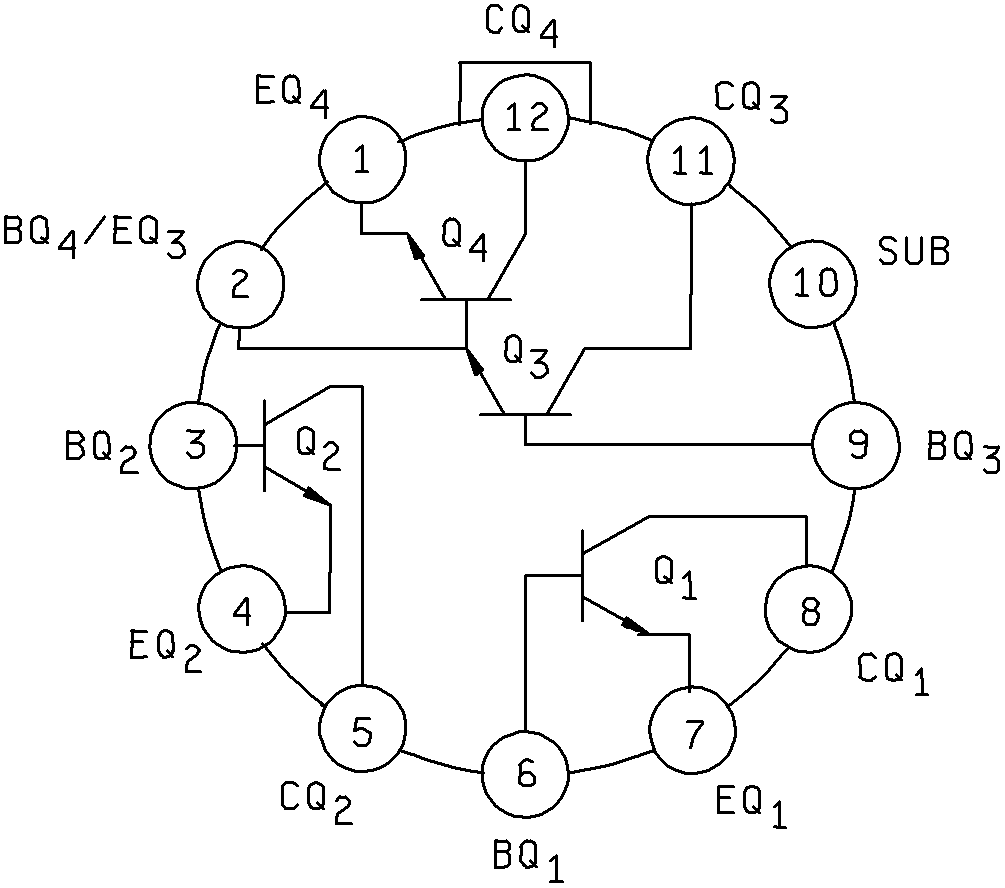

12 lead can (top view)


Device type 01


Cases A, C, D


14 lead flat pack or dual-in-line (top view)


Figure 1.  Circuit diagrams and terminal connections.
