MIL-M-38510/1070
0evice types |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
vIN |
8 v |
15 v |
18.5 v |
28 v |
8 v |
15 v |
18.5 v |
28 v |
vOUT |
-0.48 v |
-1.13 v |
-1.43 v |
-2.28 v |
-0.48 v |
-1.13 v |
-1.43 v |
-2.28 v |
R |
110 ν |
300 ν |
390 ν |
680 ν |
110 ν |
300 ν |
390 ν |
680 ν |
NOTE:
1. Q1 = 2N6187 or equivalent.
Q2 = 2N4033 or equivalent. Q3 = 2N3108 or equivalent.
CR1 = 1N3873 or equivalent.
CR2 = 1N3873 or equivalent.
2. The pulse, vPULSE, has the following characteristics: Pulse width = 100 μs
Pulse repetition rate = 200 Hz.
Pulse amplitude = 5 v.
3. Adjust vX for a forced output voltage condition during application of vPULSE.
4. Kelvin connections shall be made directly to the 0.5 ν resistor. The overload current is IOL = 2 ( vI ) amperes.
5. The overload current test checks the device limiting, and is not a measure of the output peak current.

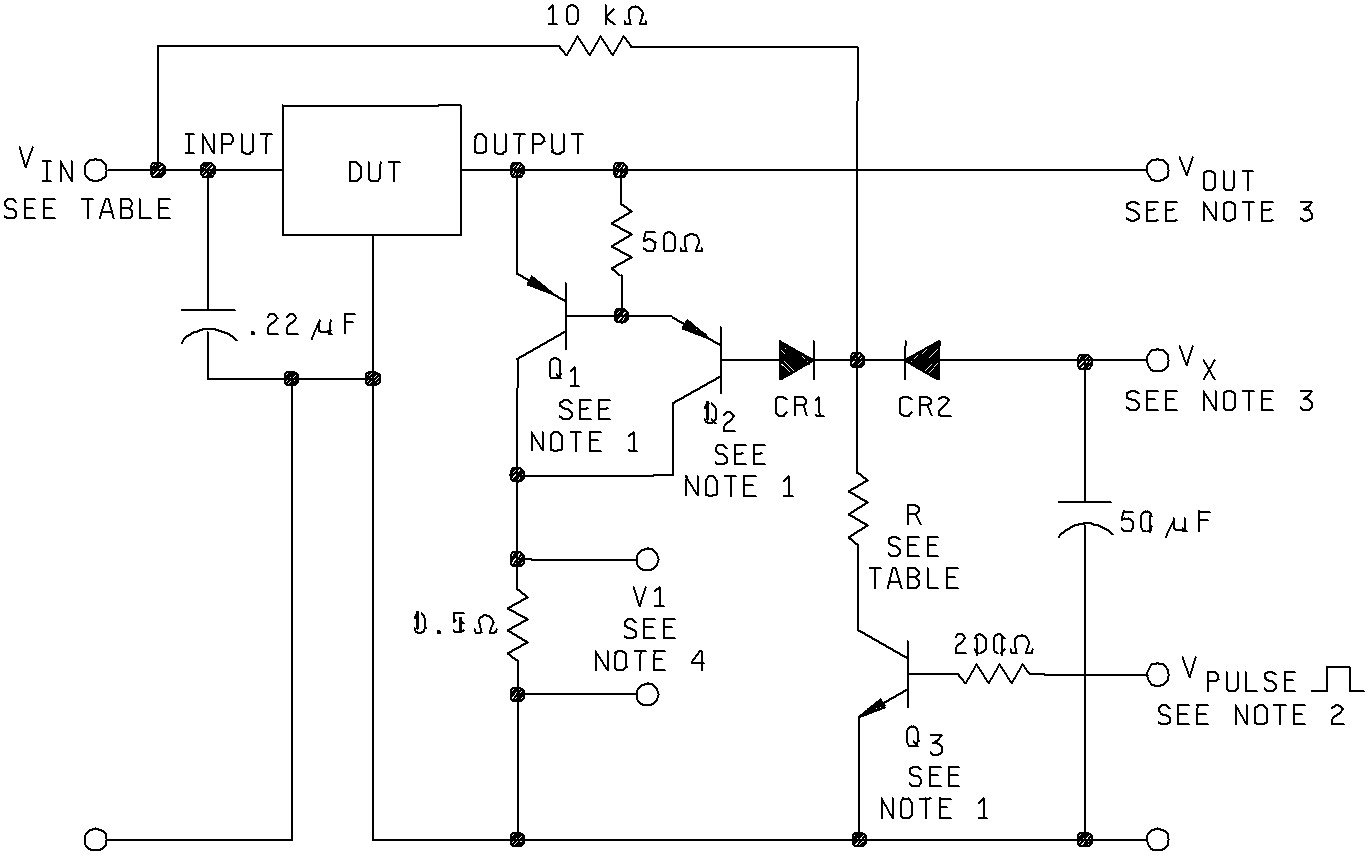

FIGURE 6. Overload current test circuit for device types 02, 03, 04, 05, 06, 07, 08, 09
31
