MIL-M-38510-650 Microcircuits, Digital, High-Speed Cmos, Nand Gates, Monolithic Silicon, Positive LogicThis specification covers the detail requirements for monolithic silicon, high speed CMOS, logic microcircuits. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete Part or Identifying Number PIN. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535 see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33


MIL-M-38510/650C

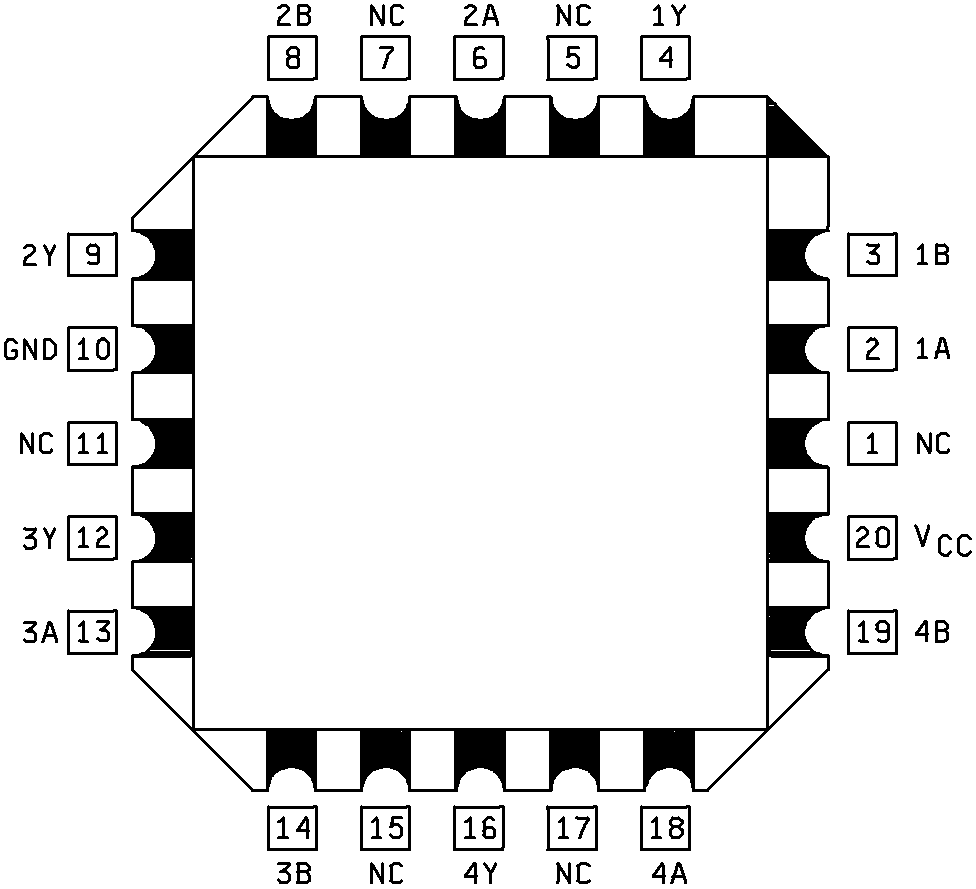

FIGURE 1.  Logic diagram and terminal connections (top views) - Continued.


Device type 05


Truth table, each gate

Inputs

Output

A

B

y

L

L

H

H

L

H

L

H

H

H

H

L


Positive logic y = AB


Device type 01


Truth table, each gate

Inputs

Output

A

B

y

L

L

H

H

L

H

L

H

H

H

H

L


Positive logic y = AB


FIGURE 2.  Truth tables and logic equations.
