MIL-M-38510-12 Microcircuits, Digital, Bipolar, Ttl, Monostable Multivibrators, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon, bipolar, TTL, monostable multivibrators microcircuits. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55

MIL-M-38510/12J

NOTES:

1. The pulse generator has the following characteristics: Vgen = 3.0 V, tTHL ≤ 10 ns, tTLH < 10 ns, tSETUP = 60 ns, ZOUT � 50 n, and PRR is as follows:

TEST	PRR
tP(out) 1 and tP(out) 2	1 MHz
tP(out) 3	500 kHz
tP(out) 4	20 kHz

2. VCC = 5.0 V minimum, RL = 390 n ±5 %, CL = 50 pF minimum including probe and jig capacitance.

3. See table III for RX and CX values.

4. All diodes are 1N3064 or equivalent.

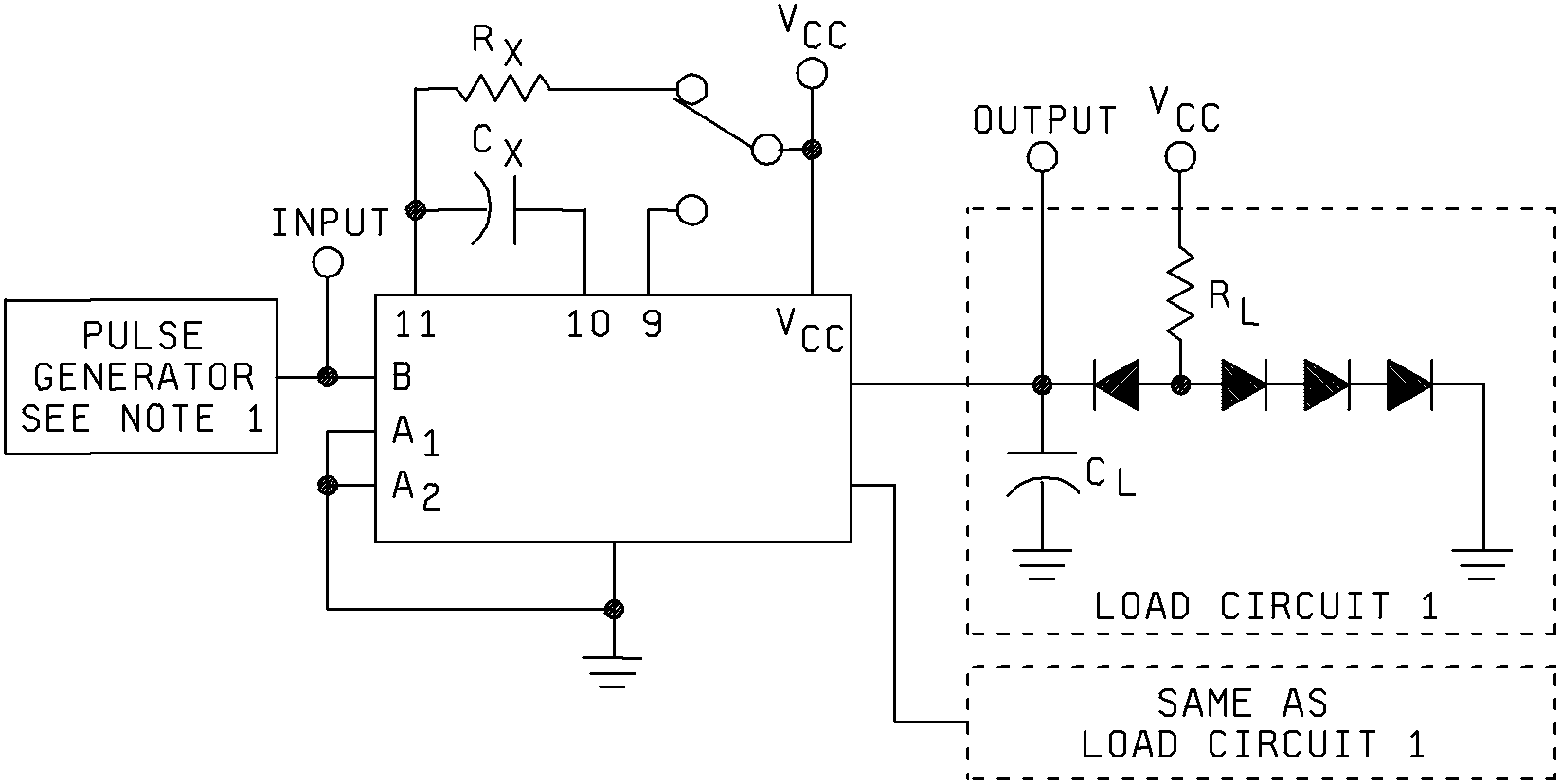

FIGURE 5. Switching test circuit for tSETUP and tP(out) of device types 01 and 06.
