MIL-M-38510I12J
NOTES (Device types 01 and 06):
1. The use internal timing resistor (2 kn nominal) connect pin 9 (RI) to pin 14 (VCC).
2. To obtain a variable pulse width, connect external variable resistor between pins 9 (RI) and 14 (VCC).
No external current limiting is required.
3. External timing capacitor may be connected between pins 10 (positive) (CX) and 11 (RX I CX).
NOTE (device types 02 and 03):
An external timing capacitor may be connected between CX and RX I CX (positive).

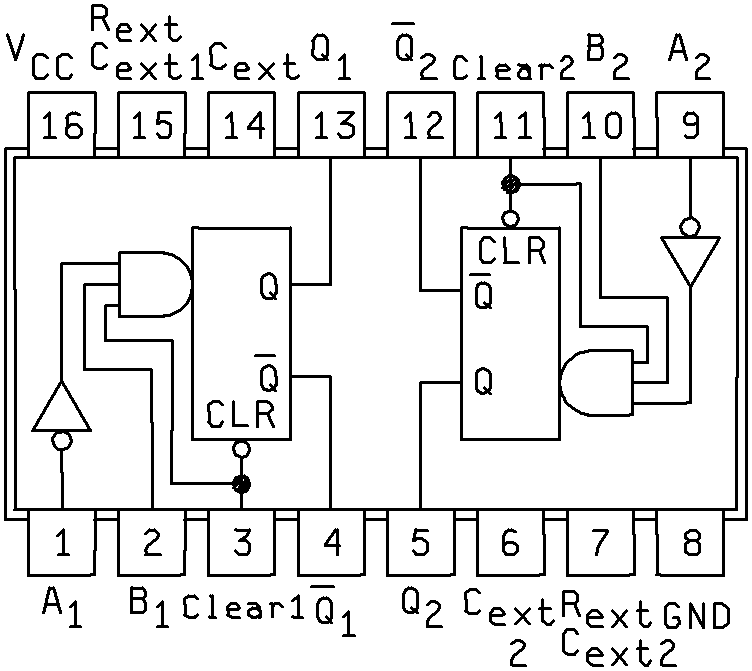

Figure 1. Logic diagrams and terminal connections (top view).
11
