MIL-M-38510-658 Microcircuits, Digital, High Speed, Cmos, Decoders, Monolithic Silicon, Positive LogicThis specification covers the detail requirements for monolithic silicon, CMOS logic microcircuits. Two product assurance classes and a choice of case outlines, lead finishes, and radiation hardness assurance RHA are provided and are reflected in the complete Part or Identifying Number PIN. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535 see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52

MIL-M-38510/658A

NOTES:

1. The truth table generator has the following characteristics: PRR < 1 MHz, 50% duty cycle.

Transition of the input under test shall occur simultaneously with or following the transition of the other inputs, tr = tf s 6 ns.

2. CL = 50 pF ± 10%; includes probe and jig capacitance.

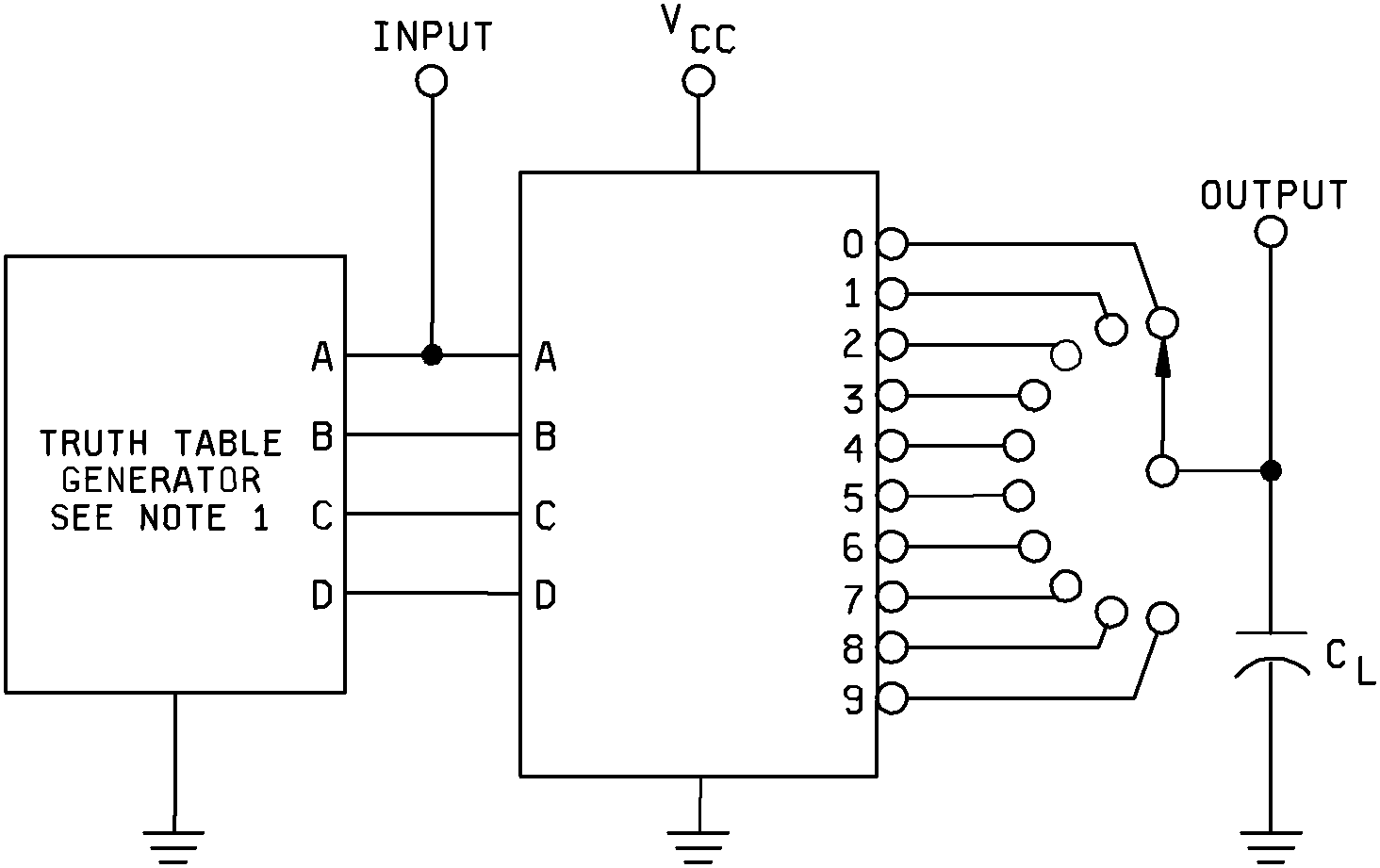

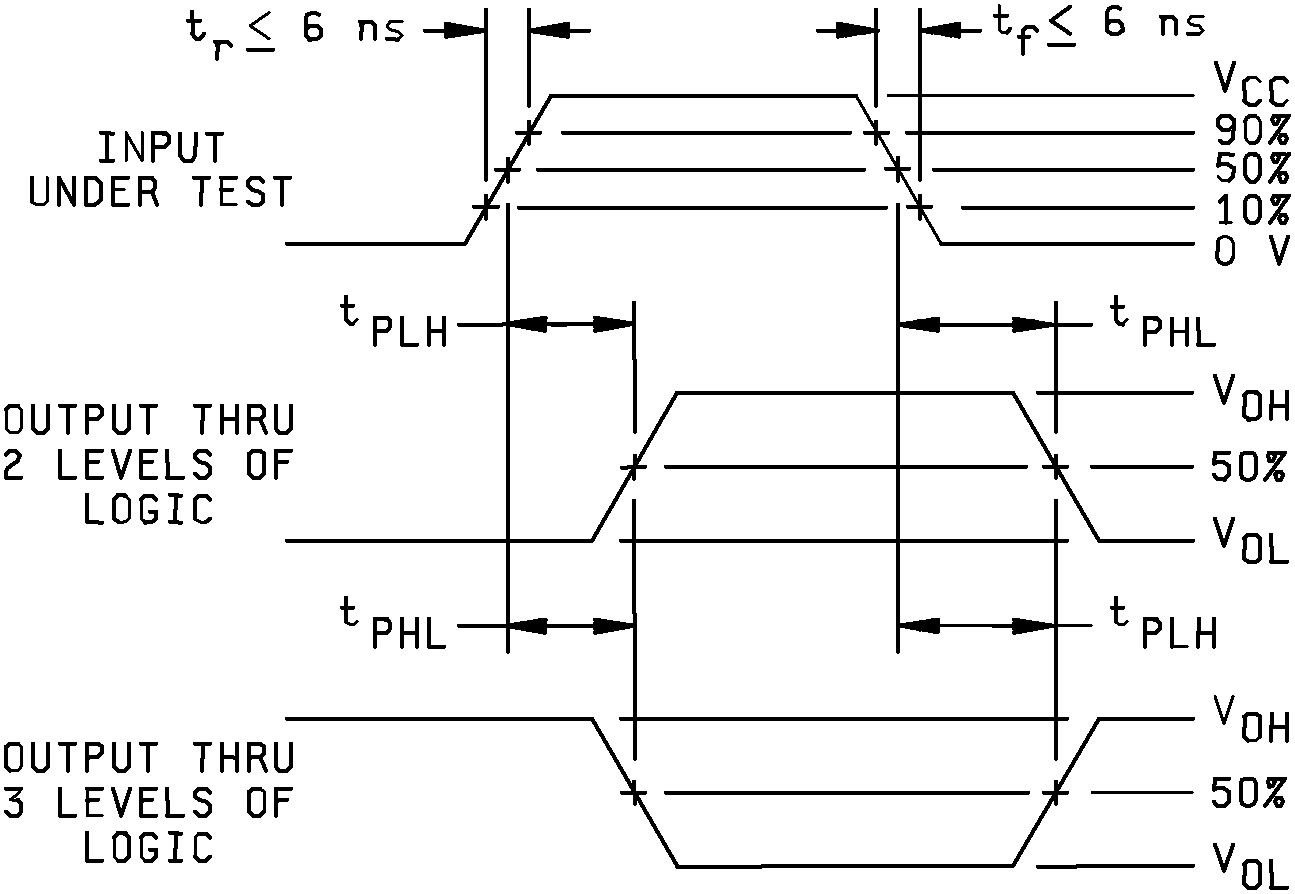

FIGURE 4. Switching time test circuits and waveforms.
