MIL-M-38510/371B
1. Clear and preset inputs dominate regardless of the state of clock or J-K inputs.
2. Clear and preset input pulse characteristics: t1 = t0 = 6 ±1.5 ns; tp ( clear ) = 15 ns;
tp ( preset ) = 15 ns; and PRR ≤ 1 MHz.
3. tp (clock) = 20 ns minimum; PRR = clear or preset PRR.
4. CL = 50 pF ±10% (including jig and probe capacitance without package in test fixture).
5. RL = 499ν ±1%.
6. When testing clear to output switching, present inputs shall have a logical "1" voltage
applied. When testing preset to output switching, clear input shall have a logical "1" voltage applied (see table III).

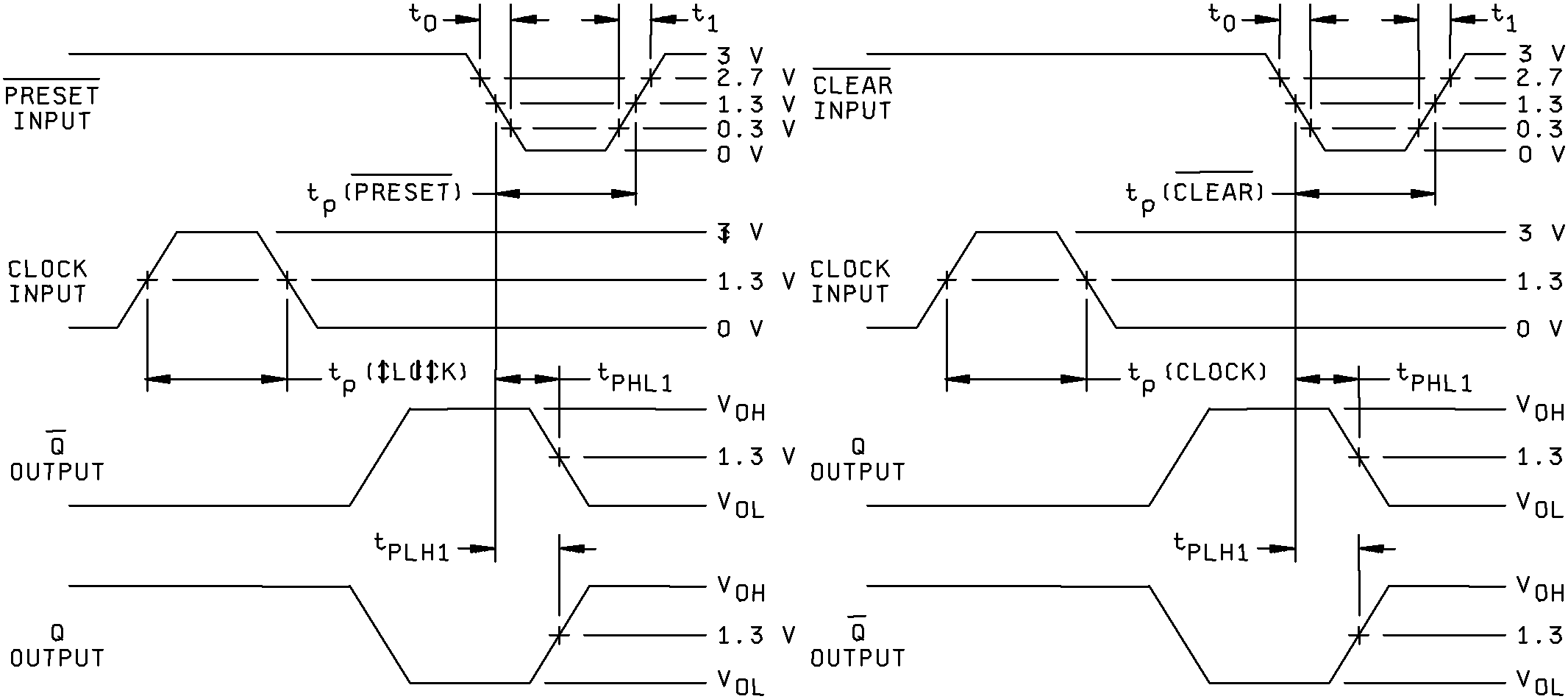

FIGURE 4. Clear and preset switching test circuit and waveforms (device type 03).
