MIL-M-38510-371 Microcircuits, Digital, Bipolar, Advanced, Low-Power Schottky Ttl, Flip-Flops, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon, advanced, low-power Schottky TTL, flip flops, bistable logic microcircuits. Two product assurance classes and a choice of case outlines/lead finish are provided for each type and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65 - 66 - 67 - 68 - 69 - 70 - 71 - 72 - 73 - 74 - 75 - 76 - 77 - 78 - 79 - 80 - 81 - 82 - 83 - 84 - 85 - 86 - 87 - 88

MIL-M-38510/371B

NOTES:

1. Clear and preset inputs dominate regardless of the state of clock or D inputs.

2. Clear or preset input pulse charactersistics: tp ( clear ) = 15 ns; tp ( preset ) = 15 ns;

and PRR ≤ 1 MHz; t0 = 6 ±1.5 ns.

3. CL = 50 pF ±10% (including jug and probe capacitance without package in test fixture).

4. RL = 499ν ±1%.

5. When testing clear to output switching, preset input shall have a logical "1" voltage

applied. When testing preset to output switching, clear input shall have a logical

"1" voltage applied (see table III).

6. Voltage measurements are to be made with respect to network ground terminal.

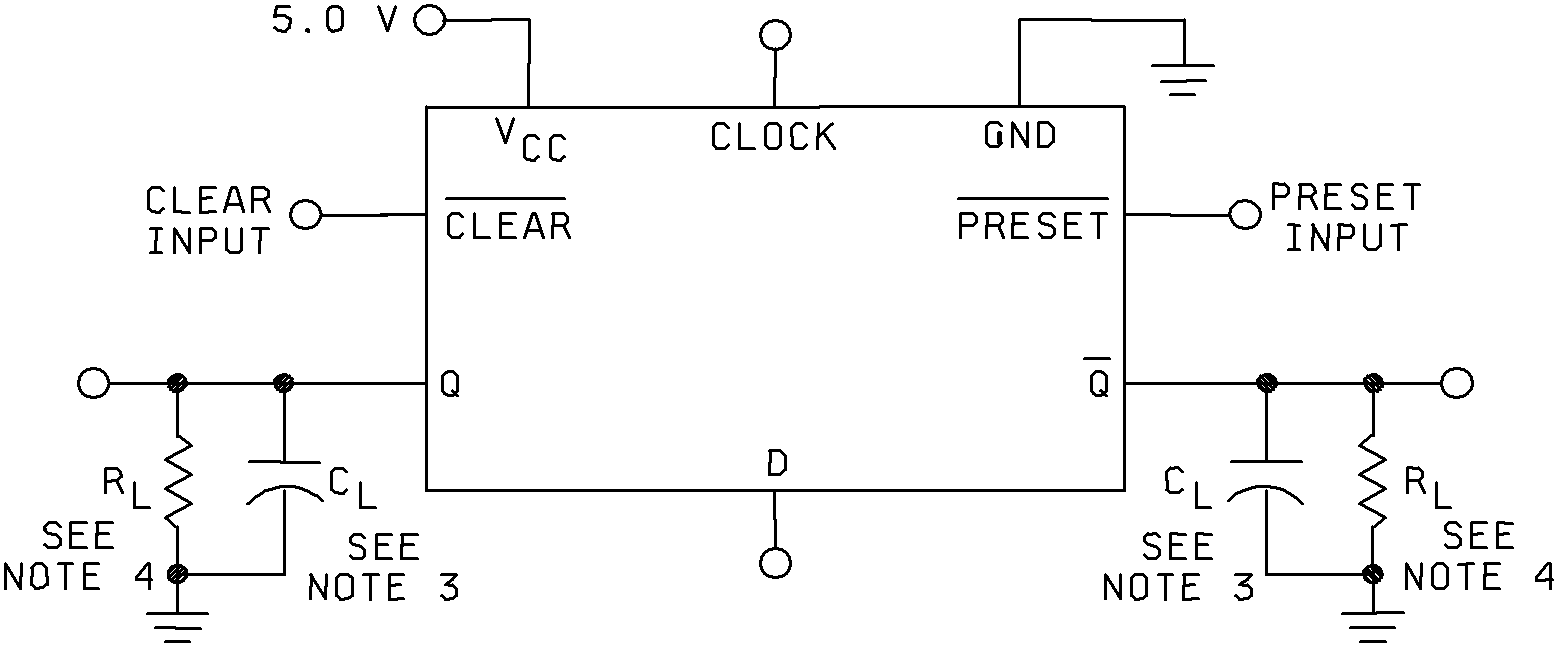

FIGURE 4. Clear and preset switching test circuit and waveforms (device type 01).
