MIL-M-38510-104 Microcircuits, Linear, Line Drivers And Receivers, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon line drivers and receivers for use as voltage comparators and in balanced or unbalanced differential transmission systems which may include party-line transmission systems. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43

MIL-M-38510/104C

Notes:

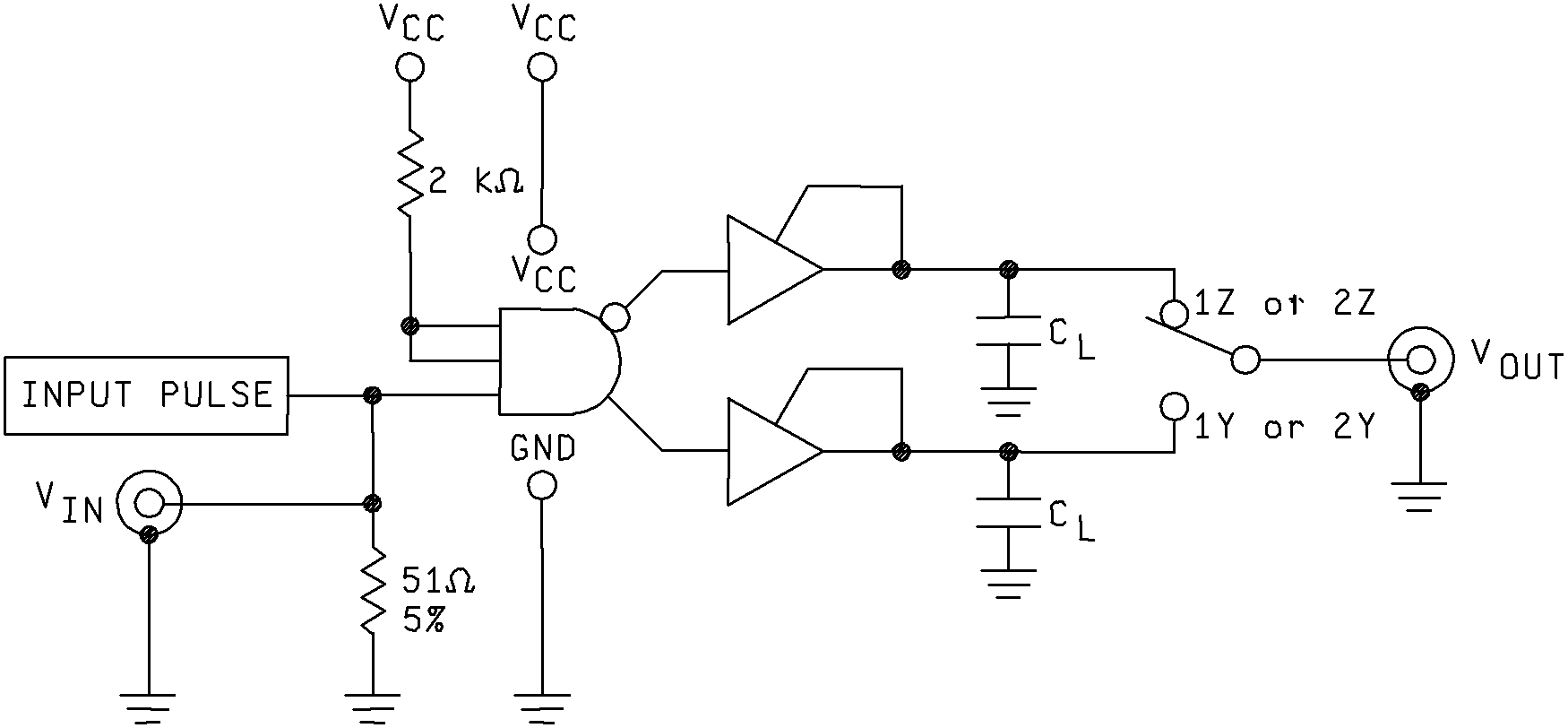

1. Input pulse: Frequency = 500 kHz, amplitude = 3 ± 0.1 v, pulse width = 110 ± 10 ns, tr = tf ≤ 5 ns.

2. CL = 50 pF including probe and jig capacitance.

3. vCC = 5 v

FIGURE 3. Switching time test circuit - Continued.
