MIL-M-38510/765A

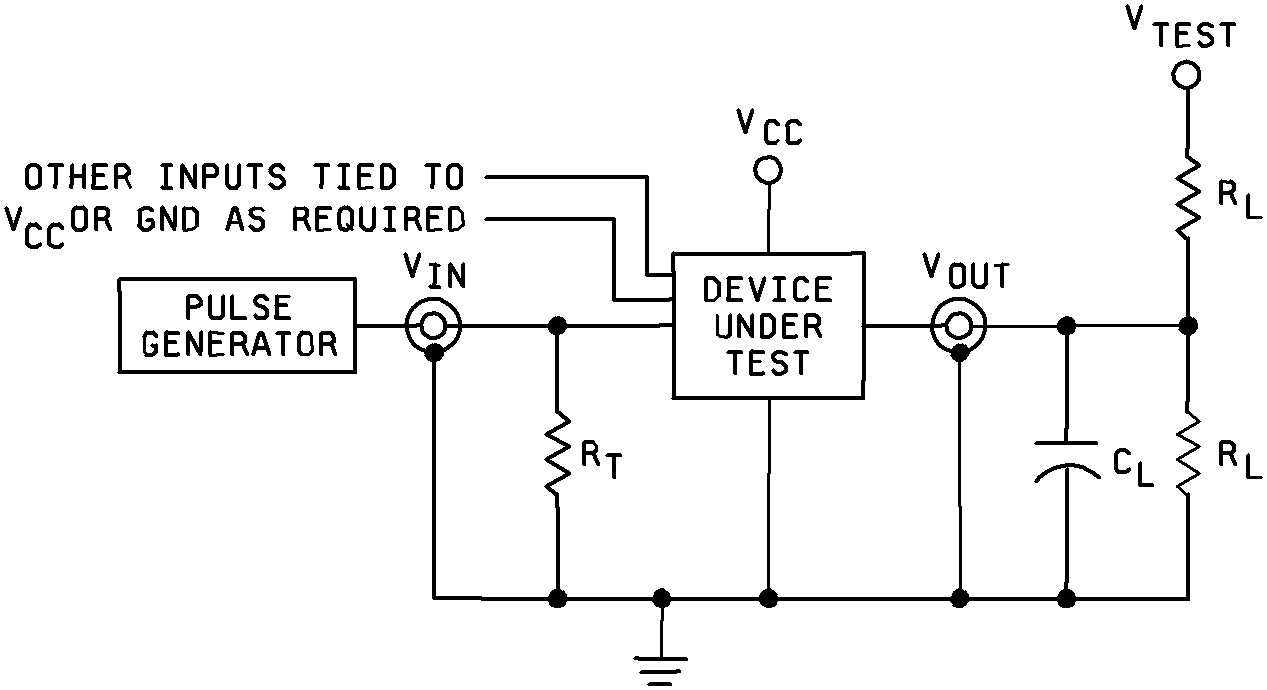

NOTES:

1.    PREFERRED METHOD:

When measuring tPHZ  or tPZH; VTEST  = GND When measuring tPLZ  or tPZL; VTEST  = 2(VCC)

2.    ALTERNATE METHOD:

When measuring tPHZ  or tPZH; VTEST  = OPEN When measuring tPLZ  or tPZL; VTEST  = 2(VCC)

3.    CL = 50pF or equivalent (includes test jig and probe capacitance).

4.    RL  = 500n or equivalent.

5.    RT  = 50n or equivalent.

6.        Input signal from pulse generator:  VIN  = 0.0 V to VCC;  PRR ≤ 10 MHz;  duty cycle = 50 percent, tr  ≤ 3.0 ns; tf  ≤ 3.0 ns; tr  and tf  shall be measured from 10% of VCC  to 90% of VCC and from  90% of VCC  to 10% of VCC, respectively.

FIGURE 3.  Switching time waveforms and test circuits - Continued.

16
