MIL-M-38510-50 Microcircuits, Digital, Cmos, Nand Gates, Monolithic Silicon, Positive LogicThis specification covers the detail requirements for monolithic silicon, CMOS, logic microcircuits. Two product assurance classes and a choice of case outlines, lead finishes, and radiation hardness assurance RHA are provided and are reflected in the complete Part or Identifying Number PIN. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535 see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37


MIL-M-38510/50F



NOTE:  All unused inputs must be tied to VDD.

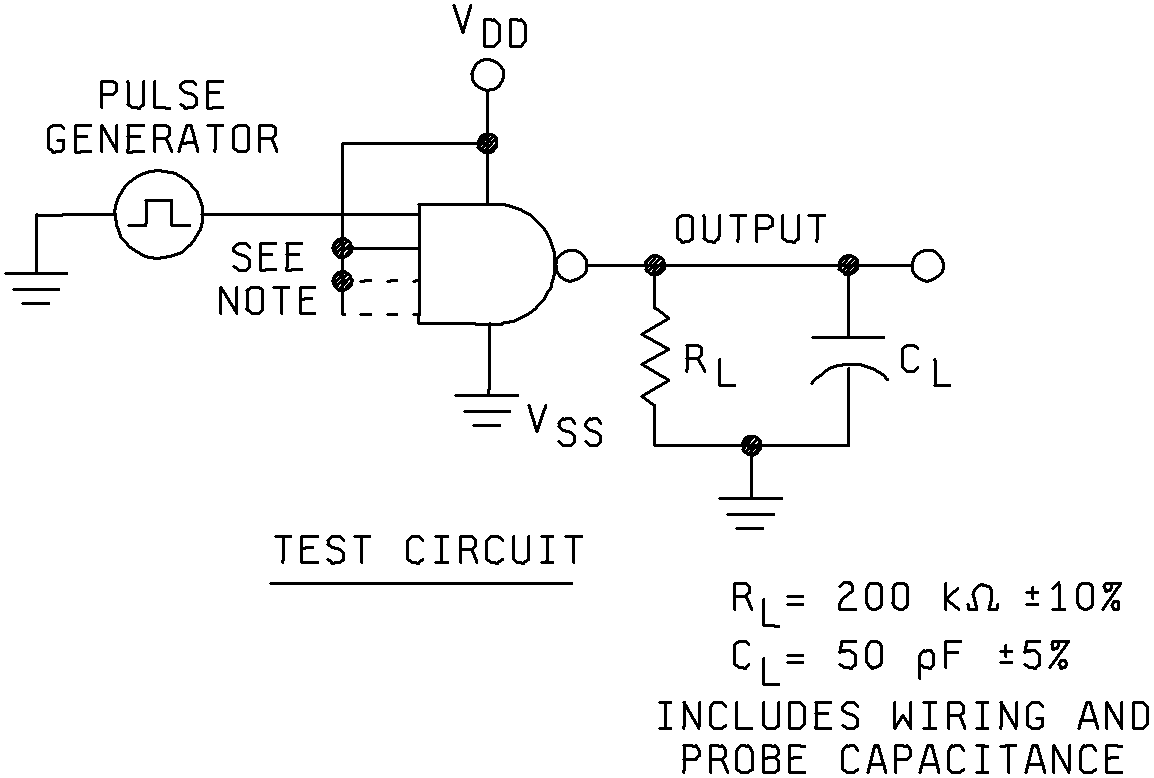

FIGURE 3.  Switching time test circuit and waveforms.
