MIL-M-38510-129 Microcircuits, Monolithic Silicon Interface, Dual, Peripheral DriversThis specification covers the detail requirements for bipolar, monolithic silicon, dual peripheral drivers. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65 - 66 - 67 - 68 - 69 - 70 - 71 - 72 - 73 - 74 - 75 - 76 - 77 - 78 - 79 - 80 - 81

MIL-M-38510/1298

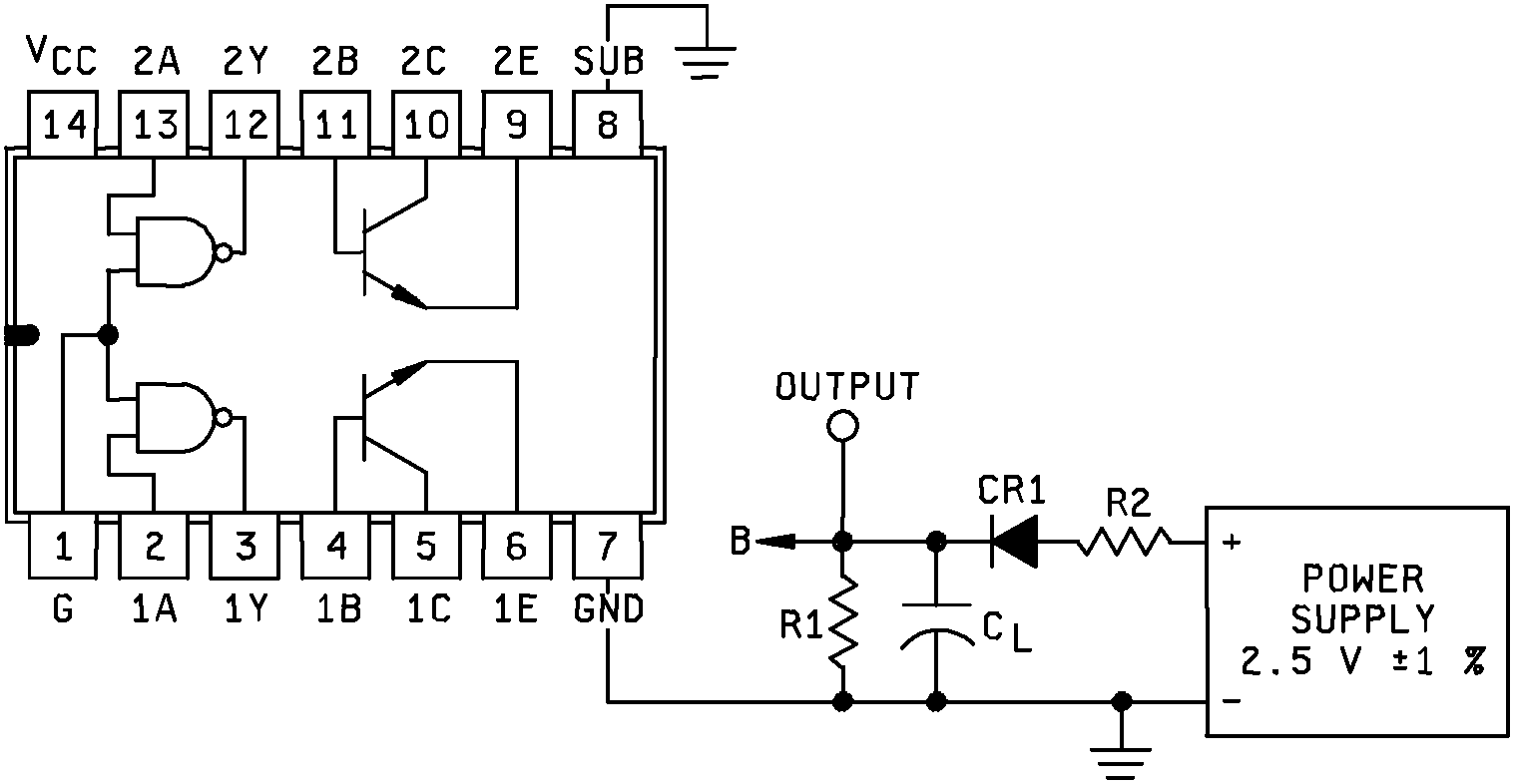

NOTES:

1. The pulse generator shall have the following characteristics: PRR = 1 MHz, tp = 0.5 µs, Zout � 50 n.

2. R1 = 6.04 kn ±1 percent, 1/8 watt.

3. CL = 100 pF, ±5 pF (including probe and parasitic capacitance).

4. Select R2 for a current flow of 16 mA ±1% out of Point 8 with Point L held at 0.5 volts.

5. CR1 = 1N4150 or equivalent.

6. R1 = 51 n ±5% carbon.

Figure 6. Propagation delay time waveforms (TTL gates only), for device types 01 and 06.
