MIL-M-38510/7568
NOTES:
1. CL = 50pF or equivalent (includes test jig and probe capacitance).
3. RL = 500n or equivalent.
3. RT = 50n or equivalent.
4. Input signal from pulse generator: VIN = 0.0 V to VCC; PRR ≤ 10 MHz; duty cycle = 50 percent, tr ≤ 3.0 ns; tf ≤ 3.0 ns; tr and tf shall be measured from 10% of VCC to 90% of VCC and from 90% of VCC to 10% of VCC, respectively.
5. Timing parameters shall be tested at a minimum input frequency of 1 MHz.
6. For tPHL, tPLH, tPHZ, and tPZH measurements, VTEST = Open. For tPLZ and tPZL measurements, VTEST = 2 x VCC.

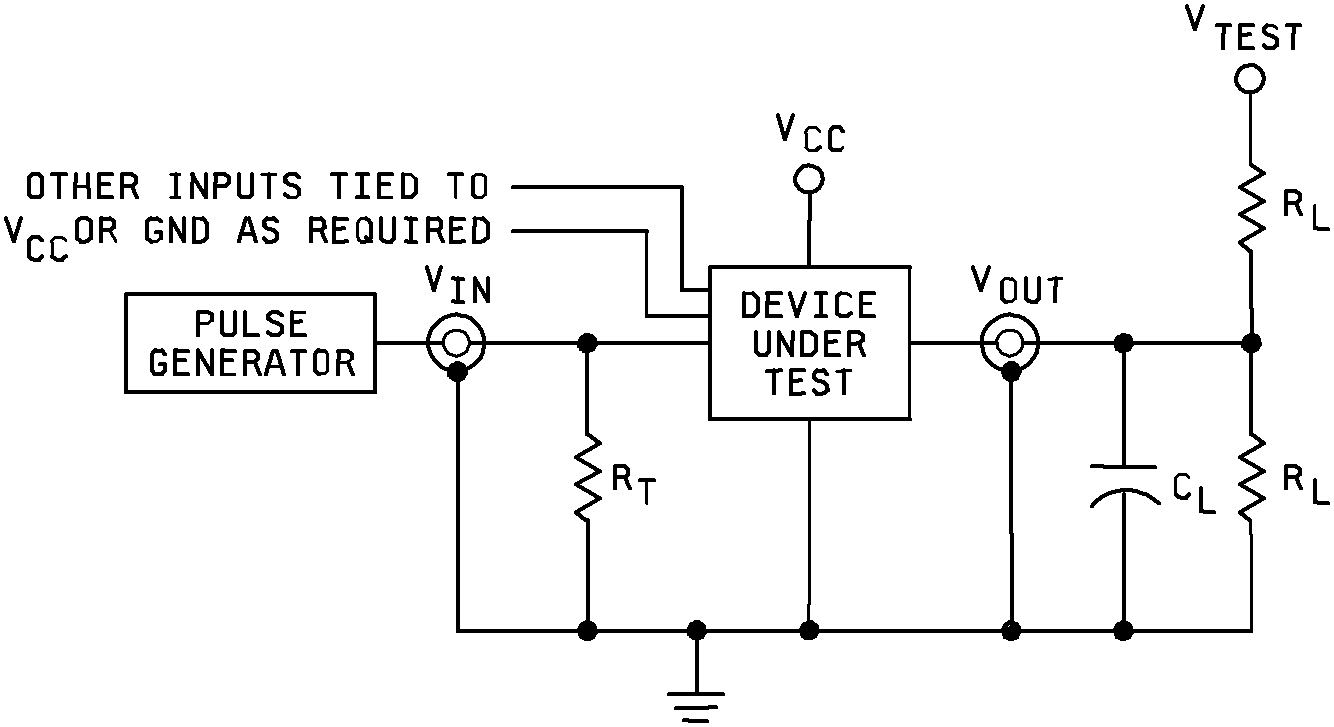

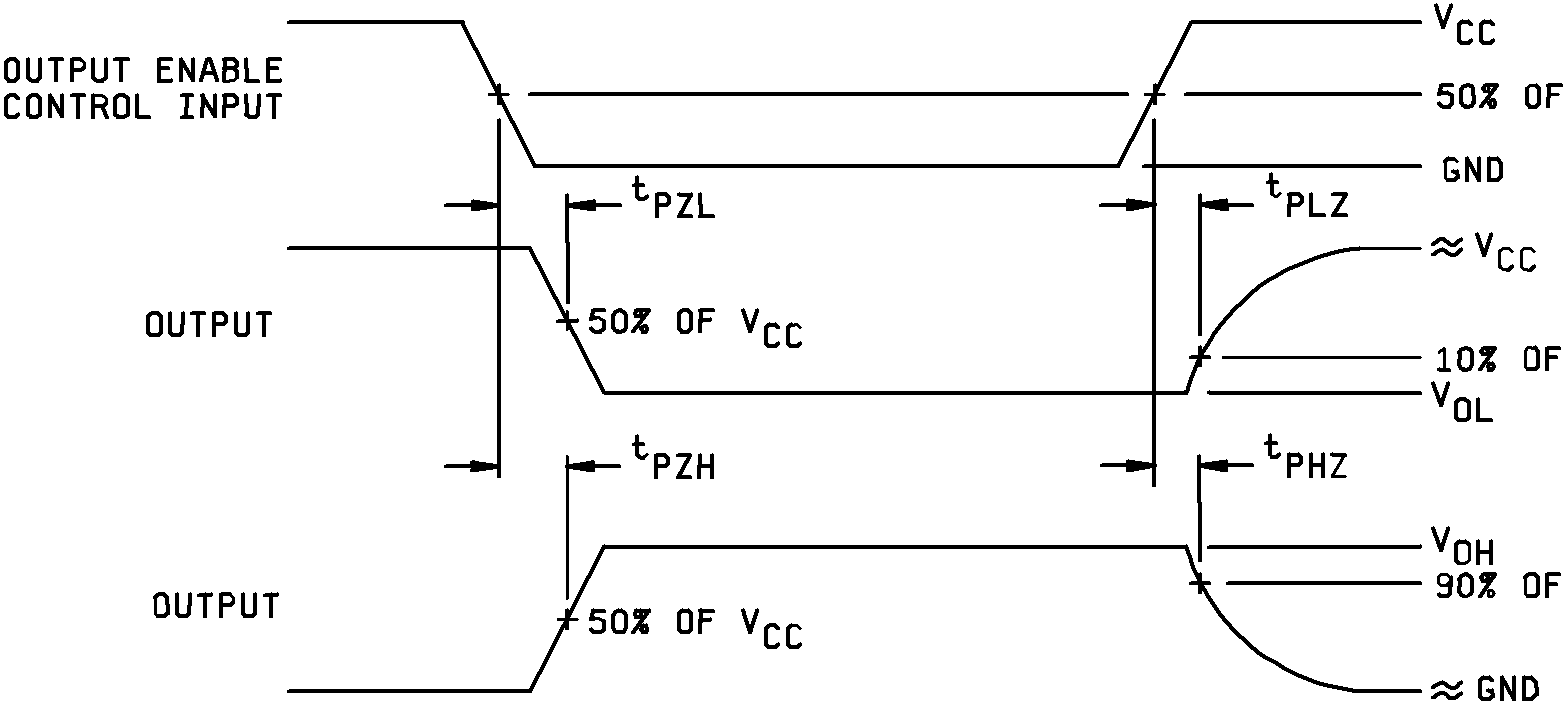

FIGURE 4. Switching waveforms and test circuit - Continued.
