MIL-M-38510-316 Microcircuits, Digital, Bipolar, Low-Power Schottky Ttl, Cascadable Latches,Monolithic SiliconThis specification covers the detail requirements for monolithic silicon, low-power Schottky TTL, latches. Two product assurance classes and a choice of case outlines and lead finishes are provided for each type and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36

MIL-M-38510/316E

NOTES:

1. R and S pulse generator has the following characteristics: tP = 40 ±10 ns, t0 � 15 ns, t1 � 6 ns, and PRR � 1.0 MHz.

2. CL = 50 pF ±10% and includes probe and jig capacitance.

3. RL = 2 kn ±5 percent.

4. All diodes are 1N3064 or equivalent.

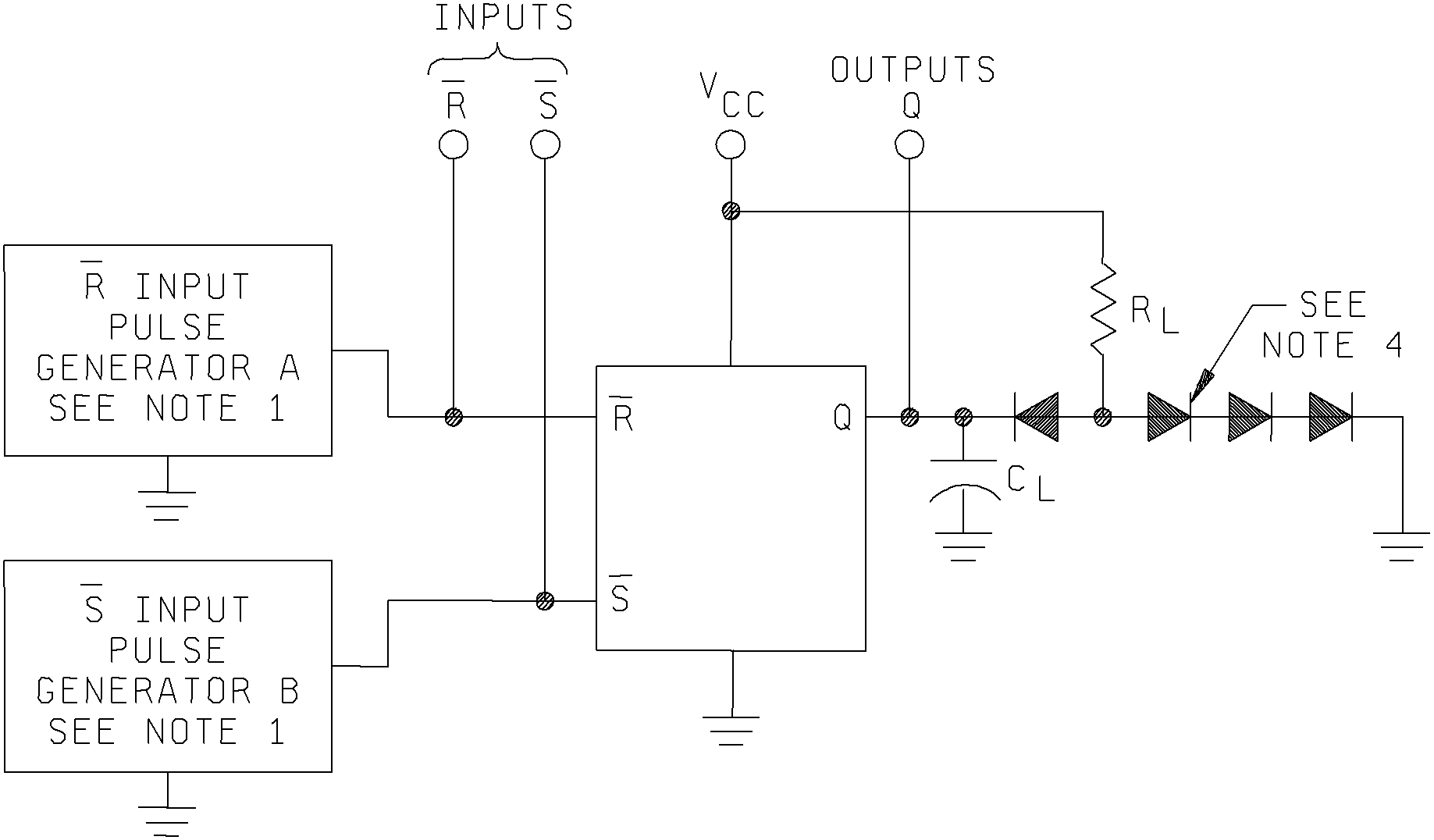

FIGURE 4. Switching test circuit and waveforms for device type 02.
