MIL-M-38510-123 Microcircuits, Linear, Cmos, Negative Logic, Analog Switch, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon, CMOS negative logic analog switches. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35


MIL-M-38510/1238


Device type 01


Device type 02



NOTE:  The pulse generator has the following characteristics:

VGEN  = 0 to 4 V, rise time σ 20 ns, fall time σ 20 ns, PRR = 200 kHz.

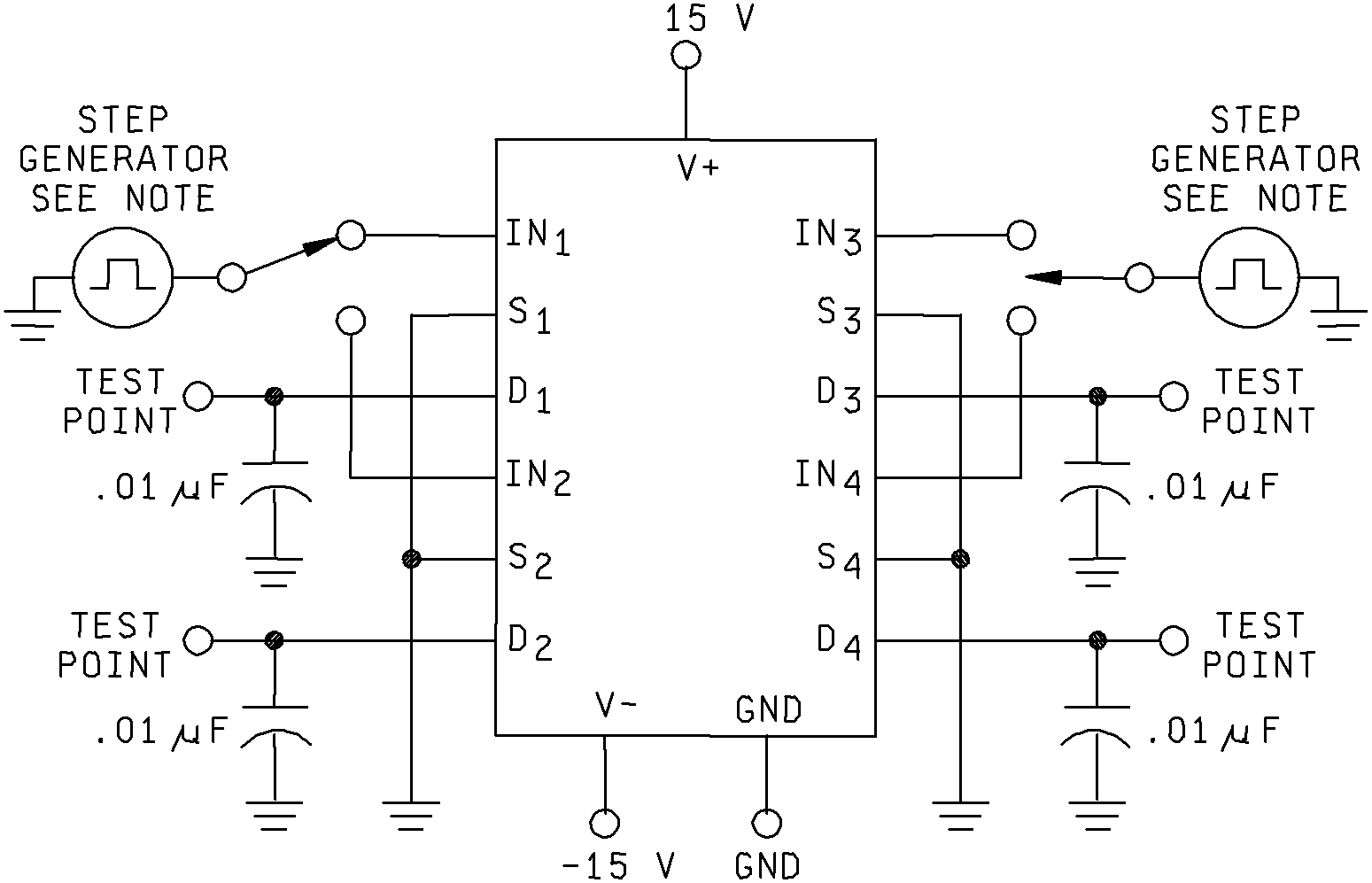

FIGURE 12. Charge transfer error test circuits.


20
