demultiplexers, logic microcircuits. Two product assurance classes and a choice of case outlines and lead finishes are provided and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.3.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43

MIL-M-38510/152C

NOTES:

1 The pulse generator has the following characteristics: PRR = 1 MHz, duty cycle = 50%, and ZOUT = 50 n.

2 CL = 50 pF minimum and includes probe and jig capacitance.

3 All diodes are 1N3064 or equivalent.

4 Load circuit is applied separately to each output pin under test. All other outputs may be open or loaded.

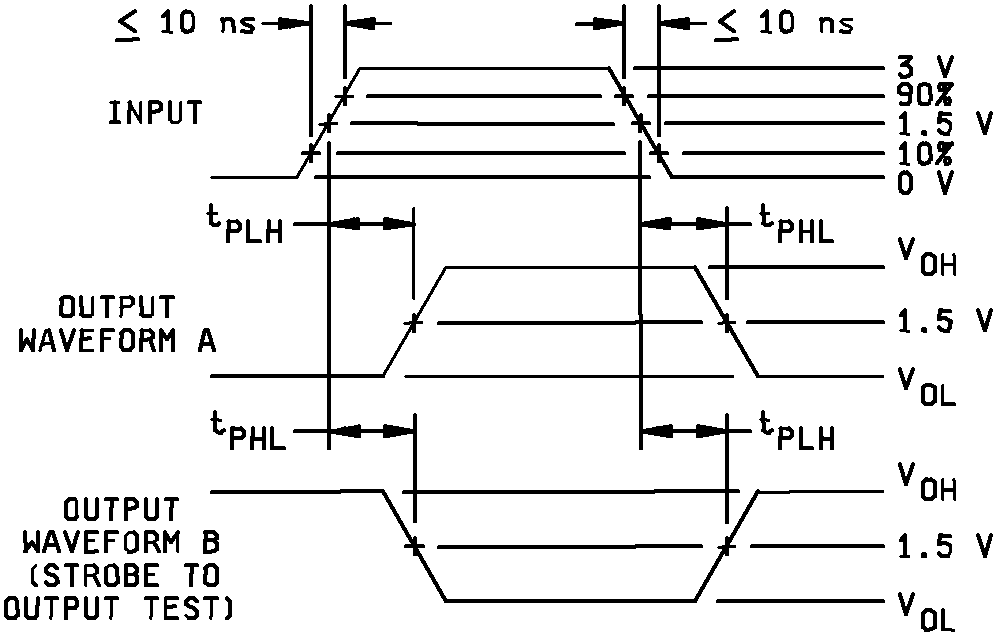

FIGURE 5. Switching test for device type 02.
