MIL-M-38510-113 Microcircuits, Linear, 8 Bit, Digital-To-Analog Converters, Monolithic SiliconThis specification covers the detail requirements for monolithic silicon, 8 bit, digital-to-analog converters. Two product assurance classes and a choice of case outlines and lead finishes are provided for each type and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.4.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31


MIL-M-38510/113C



NOTES:


1/

The reference D/A converter selected should have a resolution of 8 bits or more, and a linearity of

0.015% or better.

2/

The voltage reference should have an accuracy of ±0.02% or better.

3/

All relays are shown in their unexcited state.

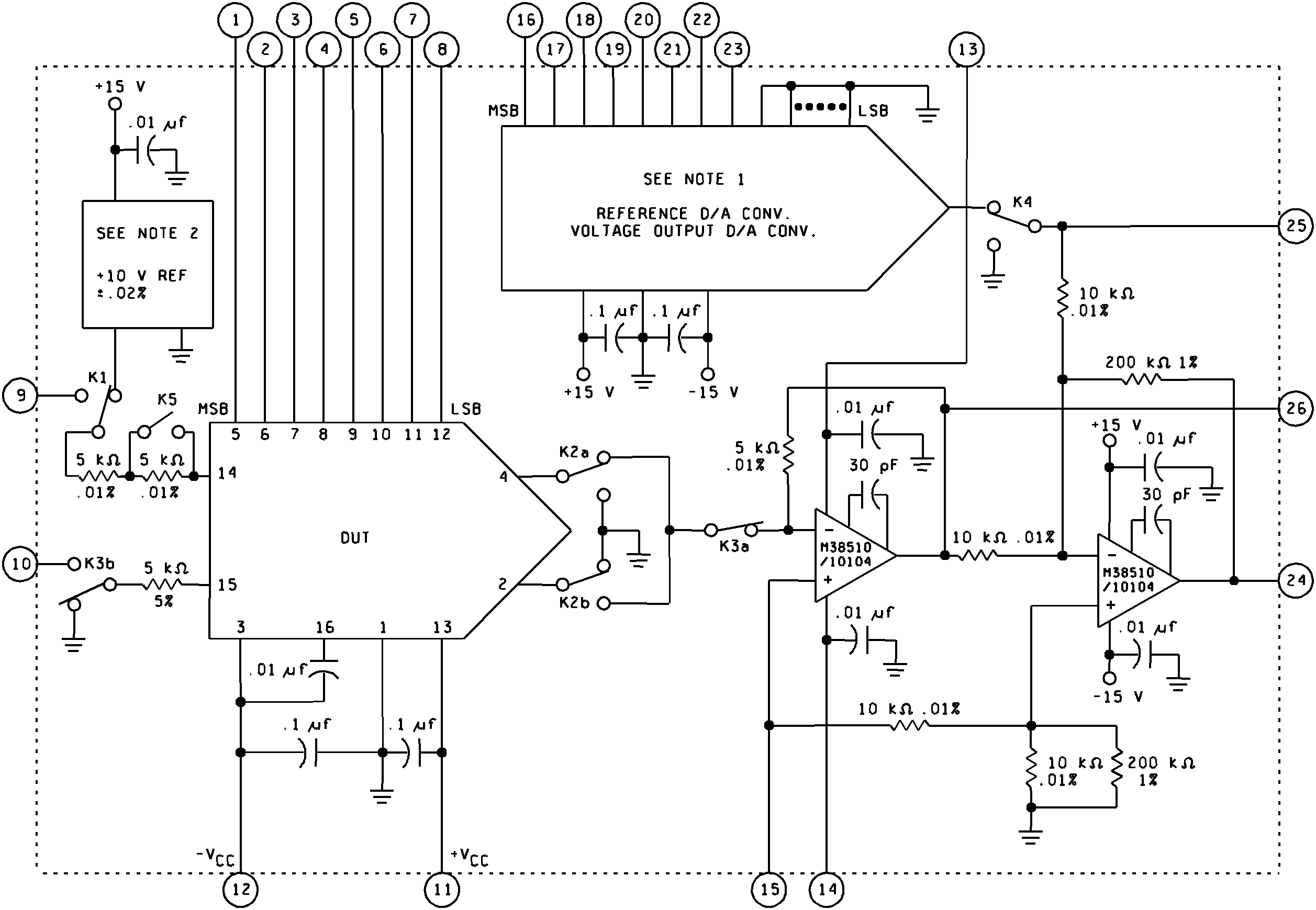

FIGURE 2.  Test circuit for static tests.
