MIL-M-38510/75C
Pin number |
Pin name |
||||
Cases |
Device type 01 |
Device type 02 |
|||
2 and X |
E and F |
A, 8, C, and D |
2 and X |
A, 8, C, and D |
E and F |
1 |
1 |
1 |
NC |
1A |
1A |
2 |
2 |
2 |
1A |
18 |
18 |
3 |
3 |
3 |
18 |
1Y |
1Y |
4 |
4 |
4 |
1Y |
2A |
1C, 2C |
5 |
5 |
5 |
NC |
28 |
2A |
6 |
6 |
6 |
2A |
2Y |
28 |
7 |
7 |
7 |
NC |
GND |
2Y |
8 |
8 |
8 |
28 |
3Y |
GND |
9 |
9 |
9 |
2Y |
3A |
3Y |
10 |
10 |
10 |
GND |
38 |
3A |
11 |
11 |
11 |
NC |
4Y |
38 |
12 |
12 |
12 |
3Y |
4A |
3C, 4C |
13 |
13 |
13 |
3A |
48 |
4Y |
14 |
14 |
14 |
38 |
vCC |
4A |
15 |
15 |
NC |
48 |
||
16 |
16 |
4Y |
vCC |
||
17 |
NC |
||||
18 |
4A |
||||
19 |
48 |
||||
20 |
vCC |
||||

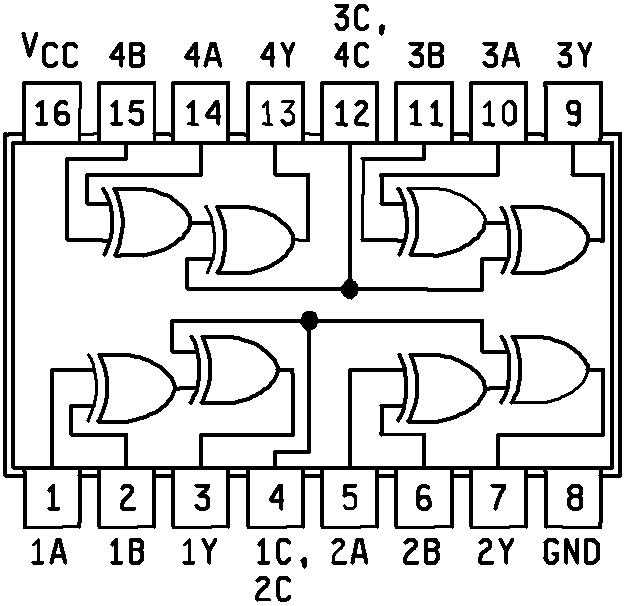

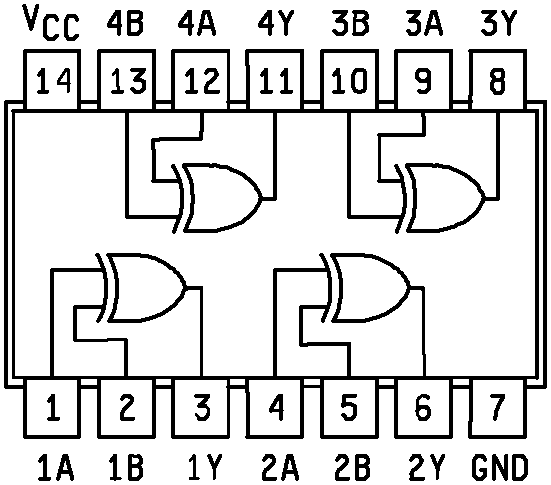

Figure 1. Logic diagram and terminal connections.
8
