MIL-M-38510-26 Microcircuits, Digital, Ttl, Low Power, Exclusive-Or Gates, Monolithic SiliconThis specification covers the detail requirements for monolithic, silicon, TTL, low power, quadruple, 2- input exclusive-OR gate microcircuits. Two product assurance classes and a choice of case outlines and lead finishes are provided for each type and are reflected in the complete part number. For this product, the requirements of MIL-M-38510 have been superseded by MIL-PRF-38535, see 6.4.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11


MIL-M-38510/26B

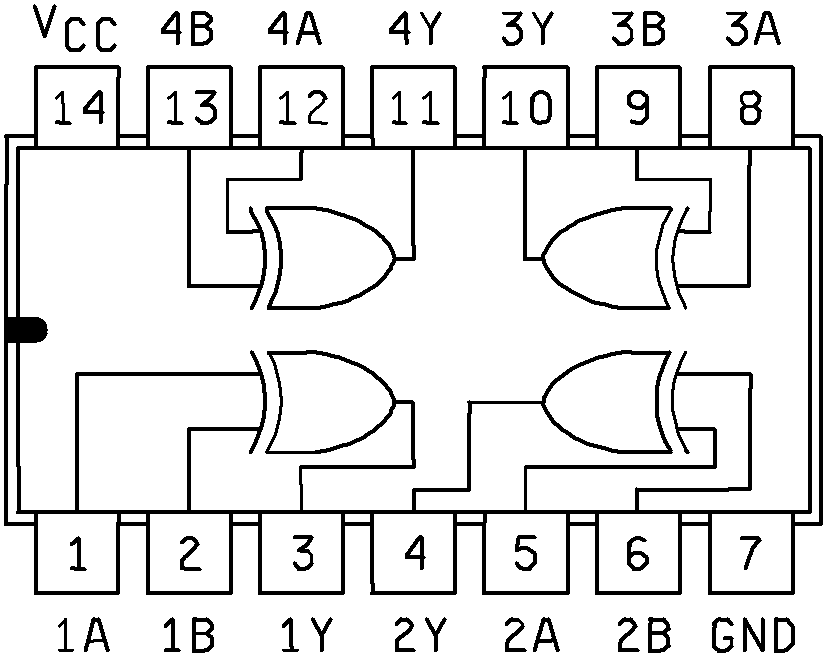

Figure 1.  Logic diagram and terminal connections.


Truth table (each gate)

Inputs

Output

A

B

y

L

L

L

L

H

H

H

L

H

H

H

L

Positive logic: y = A  ⊕  B


Figure 2.  Truth table and logic equation.


6
